Installing a Virtual Appliance in AWS

Introduction

Note on sizing: t3.xlarge & 1024GB of storage should be sufficient for servicing up to 400 agents and 1-2 remote network sensors as a primary appliance. For a remote sensor, t3.large and 512GB of storage should be sufficient. If you have requirements outside of these guidelines, please contact support for guidance. The remaining guide will be written assuming a primary appliance.


This document provides instructions for setting up a virtual appliance on AWS.


A virtual appliance is required in every region where you want to mirror traffic. If you have a presence in multiple regions, traffic mirroring can be accomplished using VPC Peering.


If your secondary regions produce a large volume of traffic, inter-region bandwidth costs may become a concern. If this is the case, a virtual appliance can be configured in each region(s).


This article covers the following:


Setting up a Virtual Cloud Appliance (AWS)

From your AWS EC2 console, click Launch Instance. Give your new instance and appropriate name and (optional) tags.


In the Application and OS Images section, select an appropriate name and (optional) tags for your instance. Select the latest 64bit x86 Ubuntu Server 24.04 LTS release for the instance's architecture.

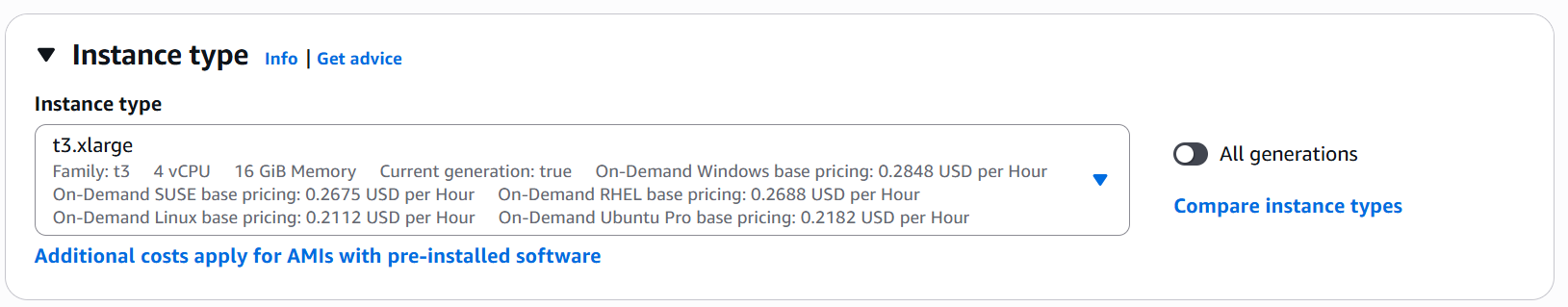

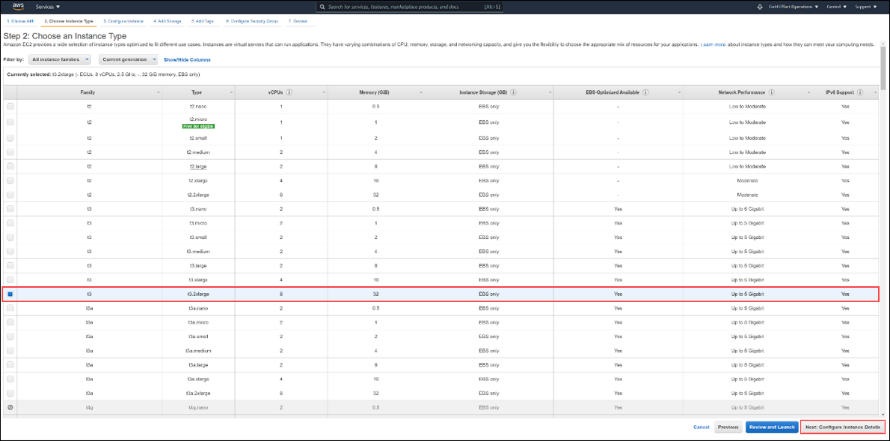

Select t3.xlarge as the instance type.

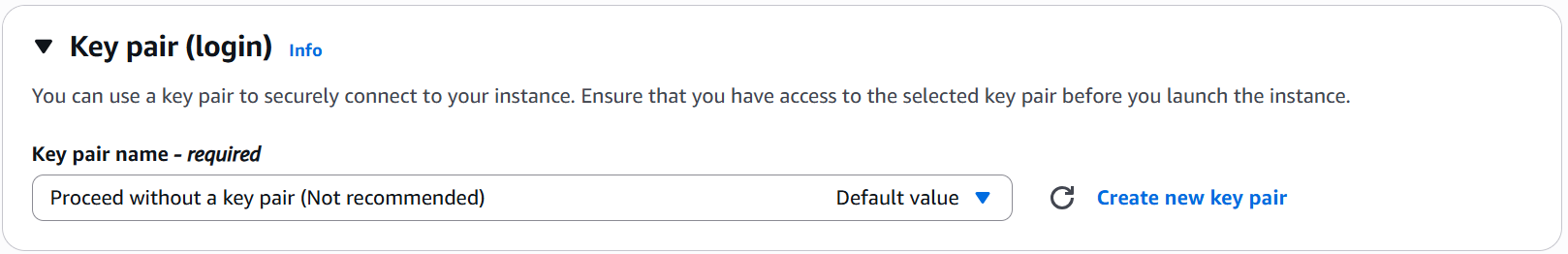

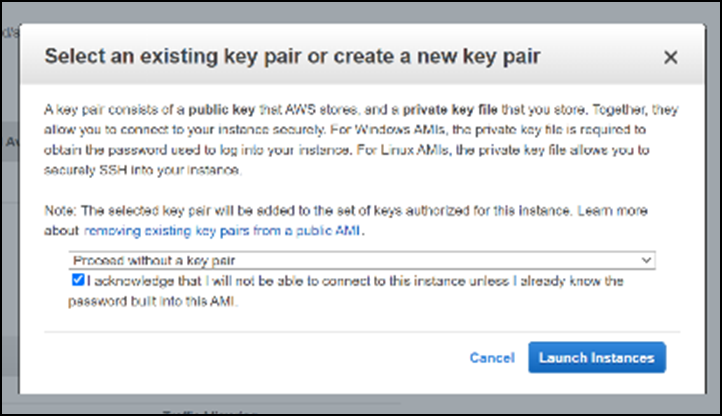

In the Key pair (login) section, select Proceed without a key pair (the provided cloud-init file will configure the needed SSH authentication).

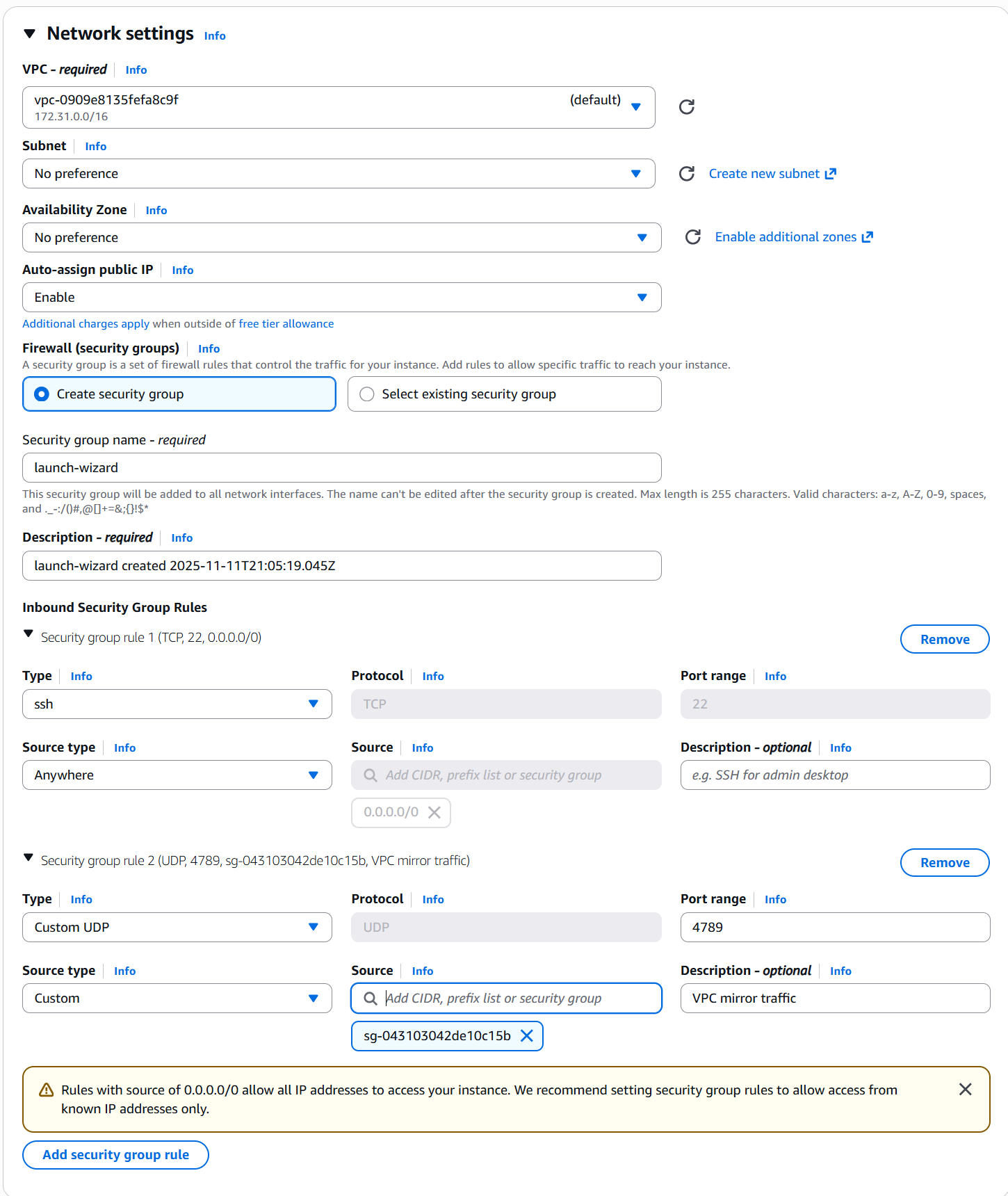

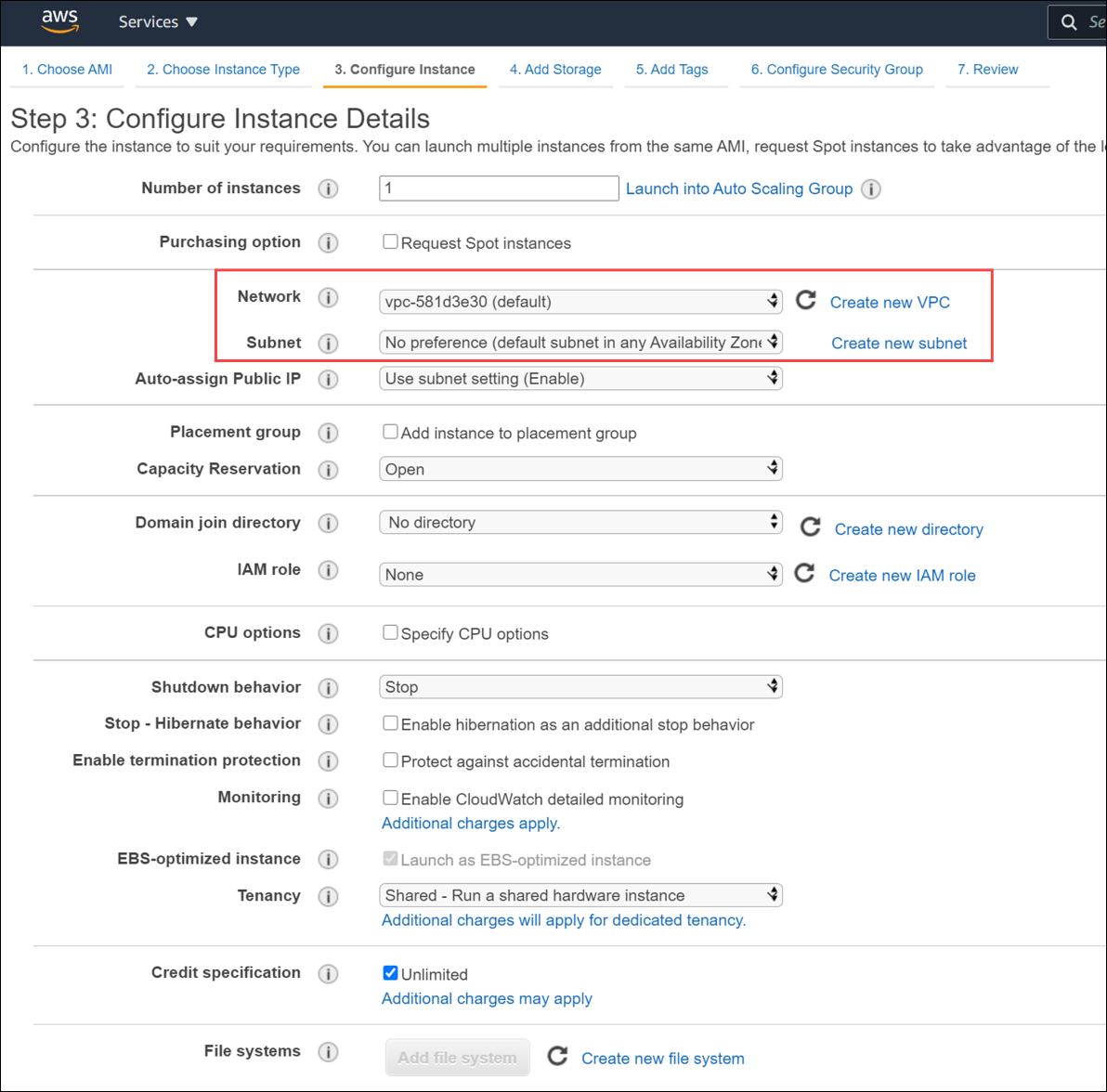

In the Network settings section, select the appropriate Virtual Private Cloud (VPC) and subnet.


Take the following considerations into account when making your selections:

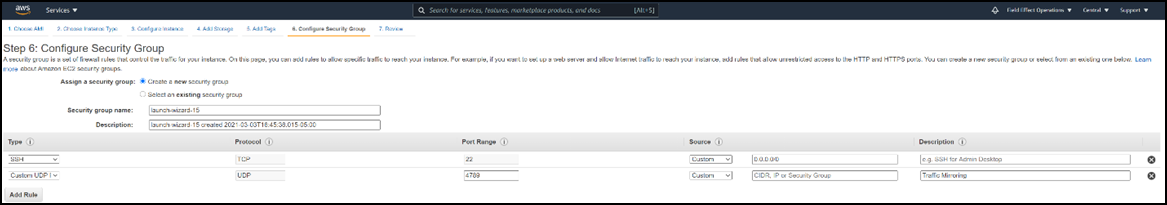

  • The virtual appliance doesn’t need to be accessible directly from the internet. But the Security Group (SG) needs to be able to establish a VPN connection out to Field Effect servers, along with normal package update locations.
  • If VPC traffic mirroring is planned:
    • The virtual appliance either needs to be in the same VPC as the traffic mirror sources, or VPC Peering needs to be configured between the VPCs.
    • The SG needs to allow UDP port 4789 incoming from the mirror source(s).
  • Any endpoint agent connectivity from outside of the local VPC is enabled using a dedicated Field Effect managed relay.

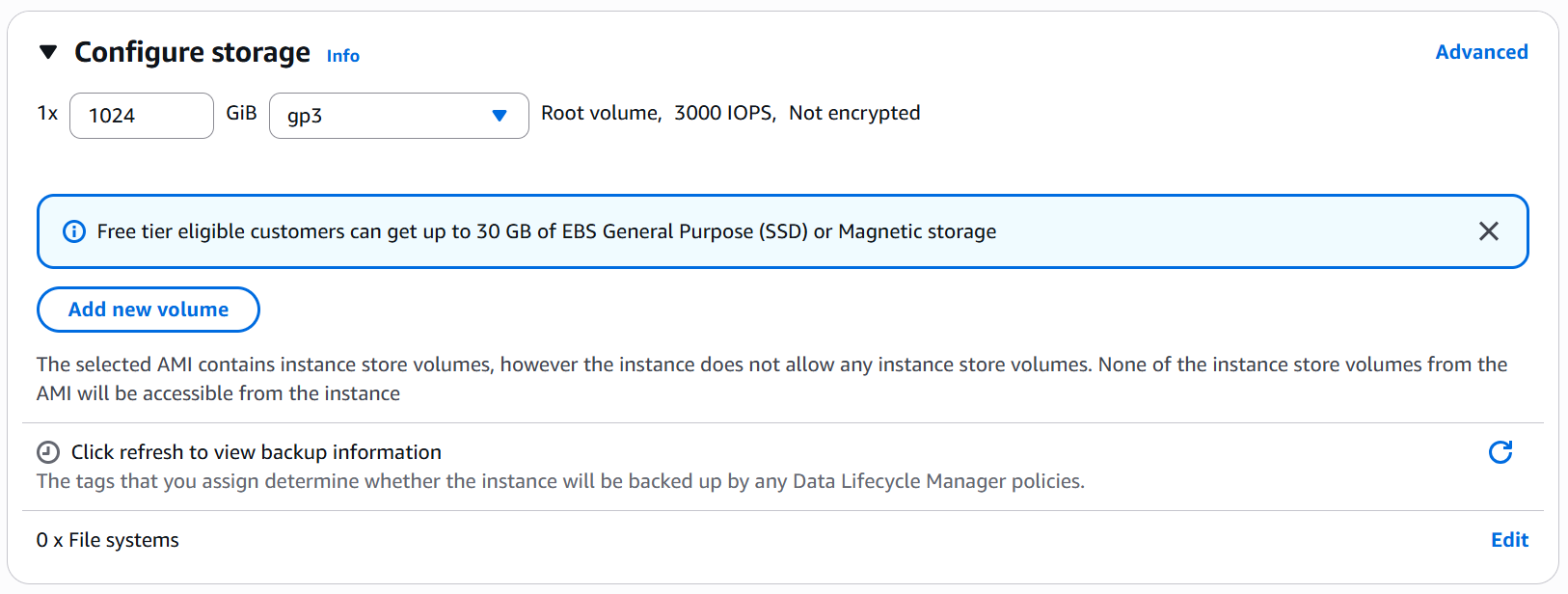

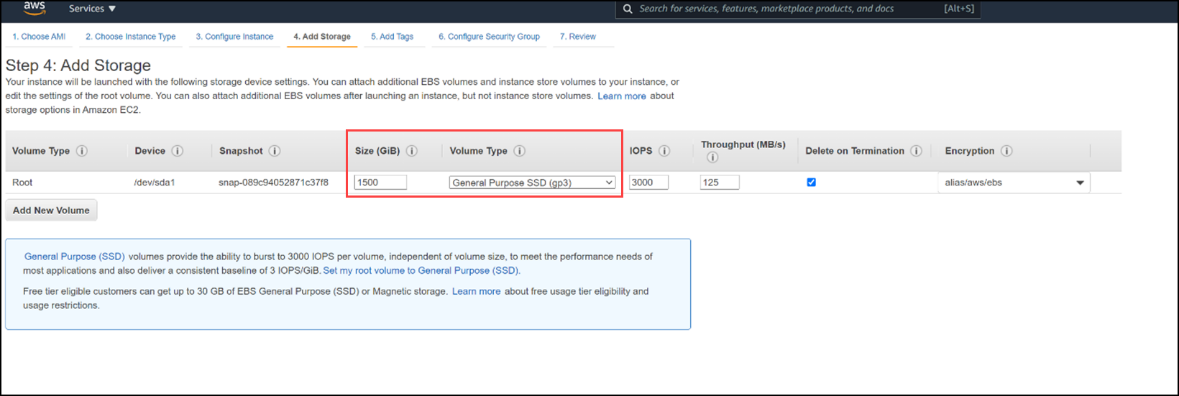

In the Configure storage section, set the size to 1024GB, and ensure the type is set to gp3.

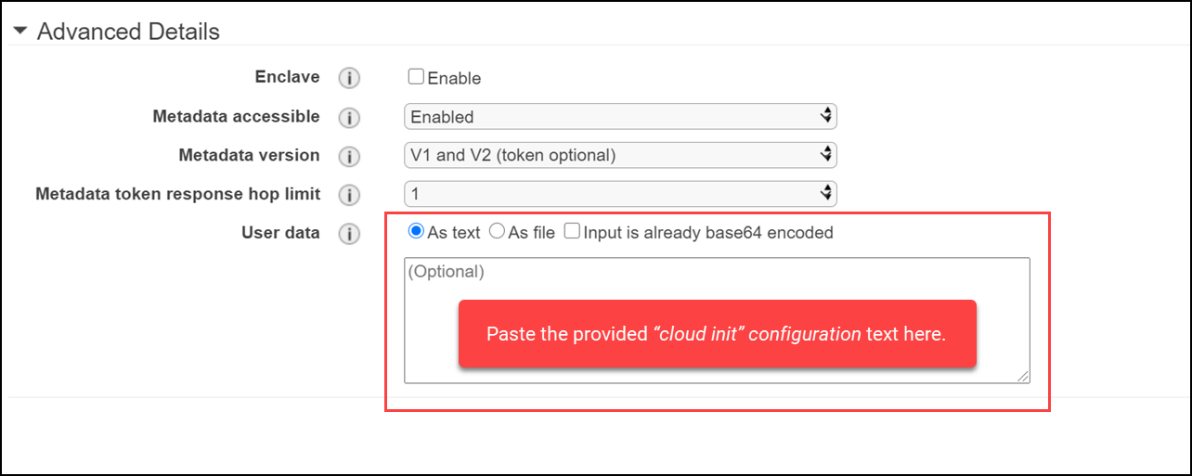

Click Advanced (shown above) to expand the Advanced details section. Leave the defaults in place (unless your environment dictates otherwise), except for the User data portion at the bottom.

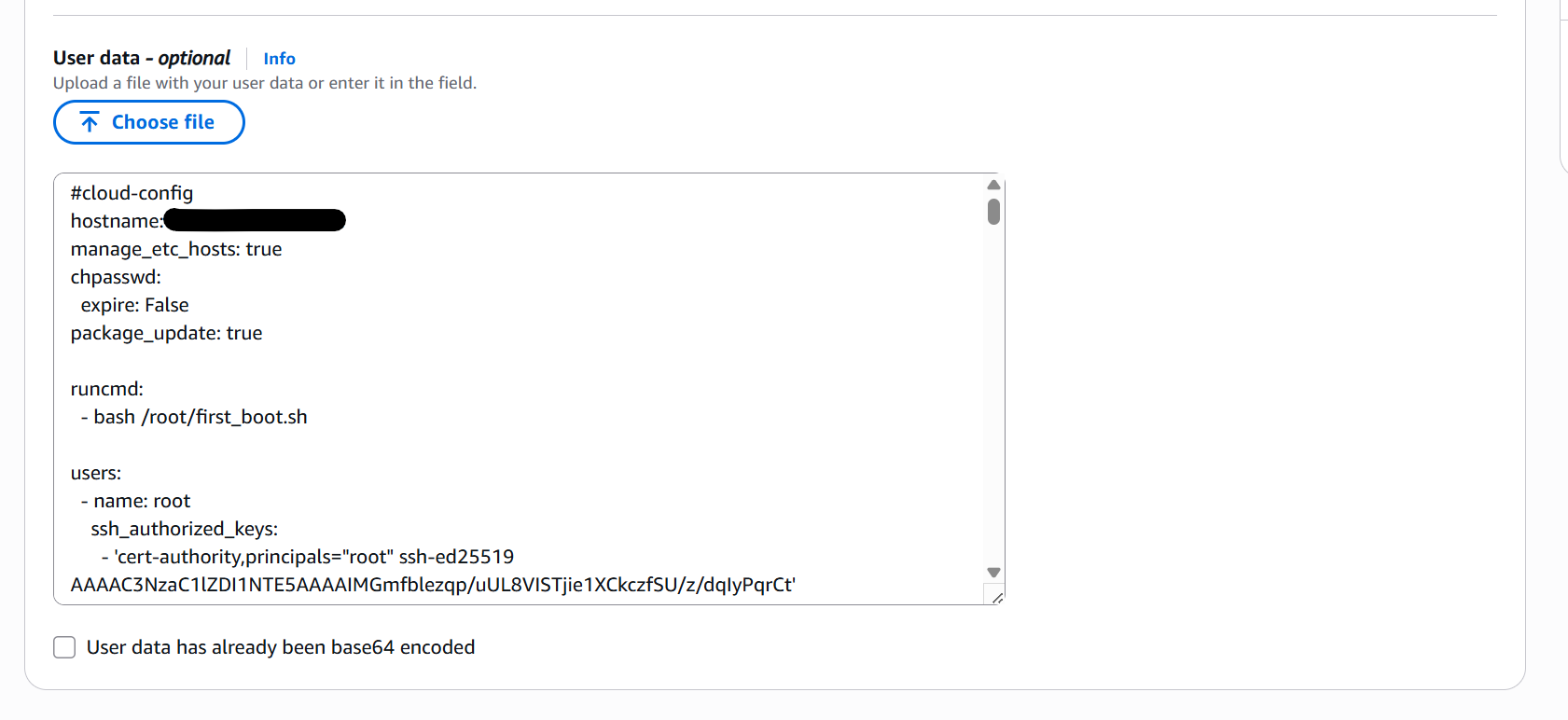

Select Choose file and upload the cloud-init file that you retrieved from the Field Effect portal.

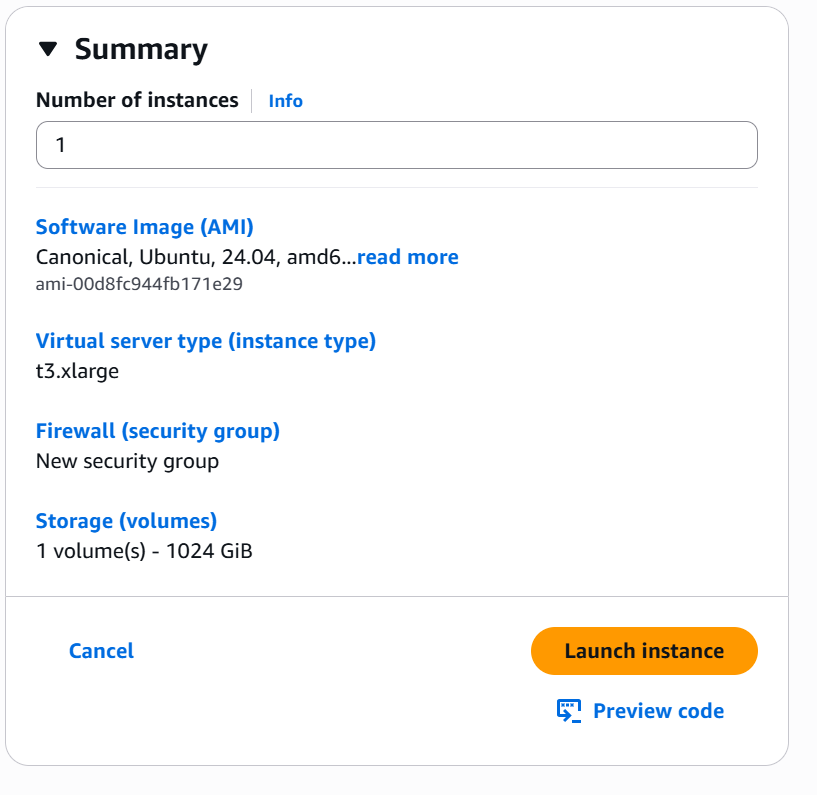

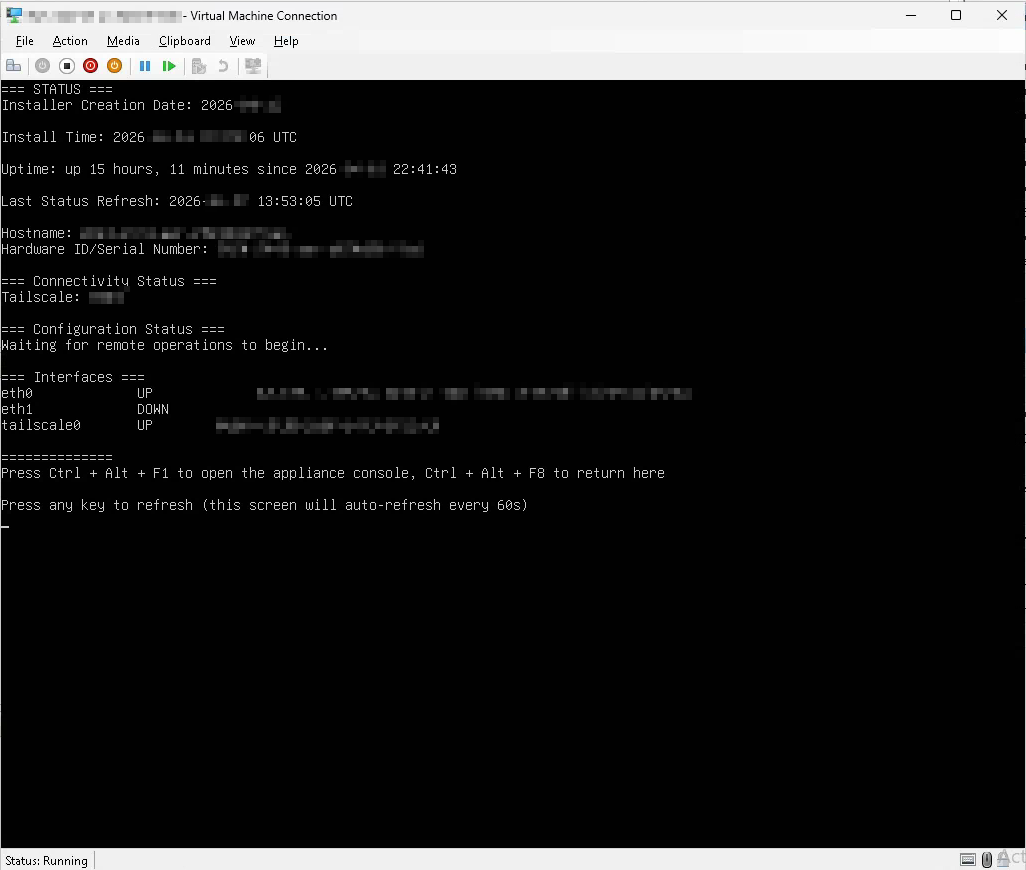

Finally, click Launch Instance. At this point your, the virtual appliance will boot and establish a secure VPN connection to Field Effect operators, who will perform a final configuration.




Setting up VPC Traffic Mirroring in AWS

Since AWS supports VPC Traffic Mirroring, you can leverage this full network packet capture data to provide greater insight into potential threats.


A single virtual appliance can act as the mirror target for many mirror sessions, and this section provides walk through for the setup process. We, however, recommend using automated tooling (here’s an example) to configure VPC traffic mirroring across your environment.


Some important caveats and limitations:

  • Despite the name, AWS’s VPC Traffic Mirroring mirrors a single Elastic Network Interface (ENI) at a time, not all VPC traffic.
  • Mirror sources must be built on the AWS Nitro system.


The following steps are required to configure traffic mirroring to your virtual appliance.


Create a Traffic Mirror Target

1. From the AWS VPC Dashboard, select Mirror Targets on the left and click Create traffic mirror target.

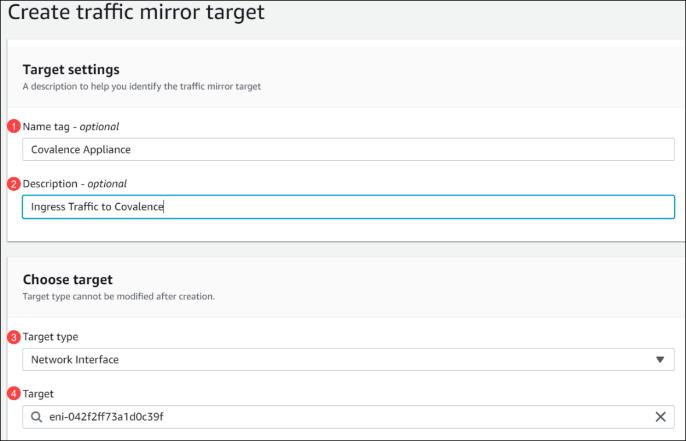

2. The “Create traffic mirror target” form will appear on your Screen Set the following parameters:


   Target settings (optional):

  • Name tag – optional: Field Effect Appliance
  • Description – optional: Ingress Traffic to Field Effect


   Choose Target:

  • Target type: Network Interface
  • Target: set to the Elastic Network Interface of the virtual appliance created earlier. This can be retrieved from the Instance details section’s Networking tab.


Graphical user interface, text, application, email
Description automatically generated


Create a Traffic Mirror Filter

1. From the AWS VPC Dashboard, select “Mirror Filters” from the left and click Create traffic mirror filter.


2. The “Create traffic mirror filter” form will appear on your screen. On this form, provide Inbound and Outbound rules for the      traffic to be mirrored to the appliance.


3. To mirror all IP traffic, add “0.0.0.0/0” in the CIDR blocks. The highest priority traffic for Field Effect is “north/south” traffic to and from your EC2 instances/VPC and the internet, so ensure this is added.


4. Note: Under network services – optional, ‘amazon-dns’ checkbox should be checked. This ensures that DNS traffic is also mirrored.

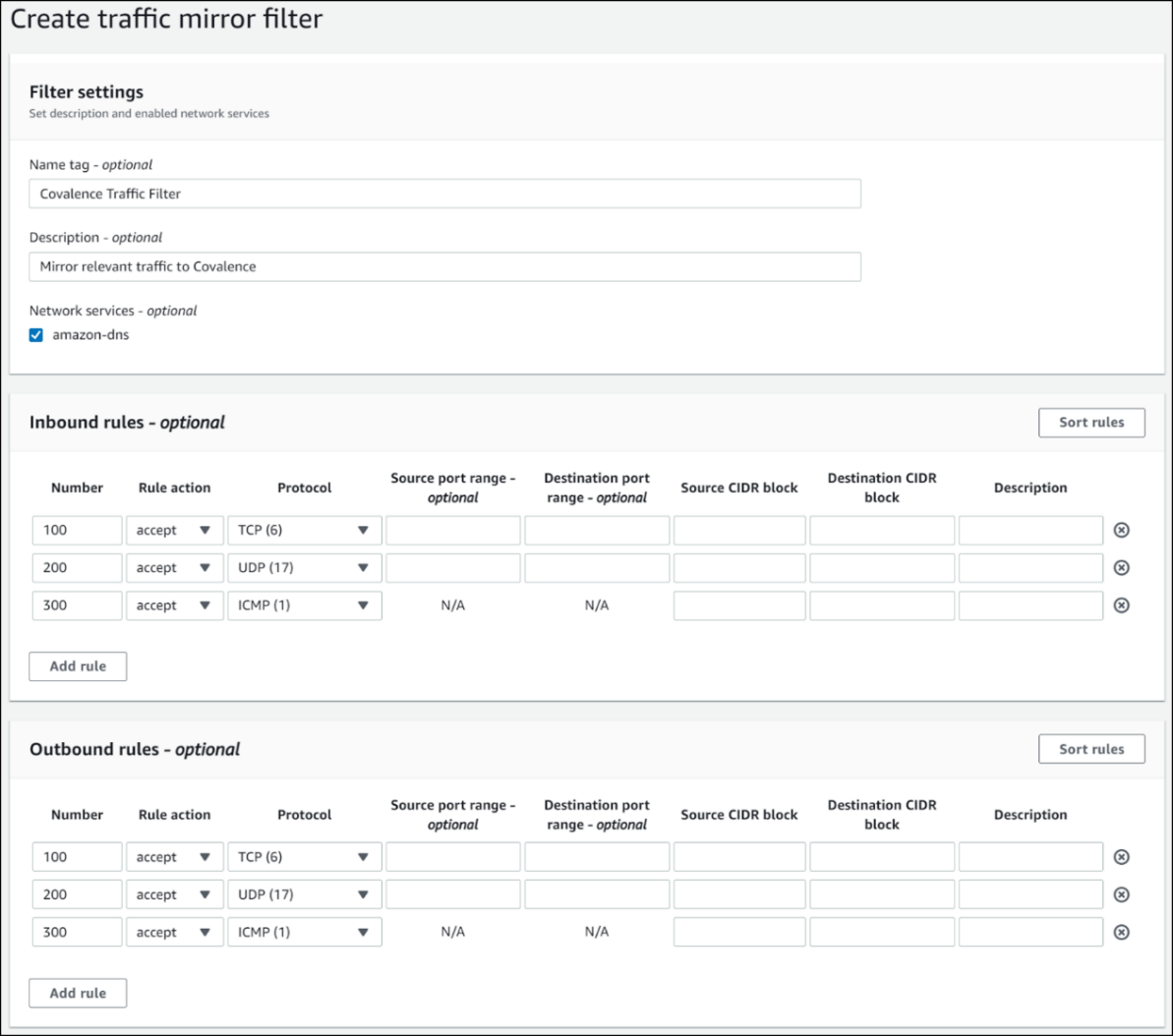

5. These rules are custom to your environment, but here is an example of the form:


Table
Description automatically generated


Create a Traffic Mirror Session

1. From the AWS VPC Dashboard, select “Mirror Sessions” on the left and click Create traffic mirror session. The “Create traffic  mirror session” form will appear on your screen.

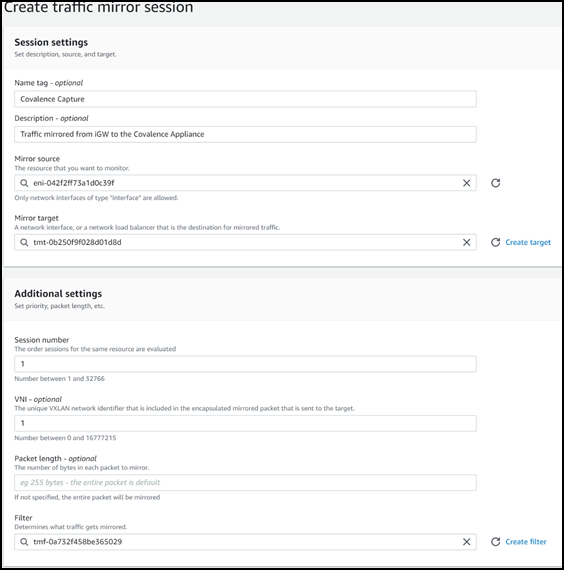

2. Using the Mirror Target and Mirror Filters created earlier, we can now establish a tagged session to send to the virtual appliance. Here is an example of the form:


Table
Description automatically generated


3. Once complete, the virtual appliance should now be configured to receive network traffic and will be configured by Field Effect for your organization.


Notes for traffic mirror sessions:

  • Only Elastic Network Interfaces (ENI) associated to Nitro type instances can be used as a mirror source.
  • If the virtual appliance has been setup on a different VPC, then a VPC peering relationship must be configured between the two VPCs. See Amazon’s articles What is VPC Peering and Create a VPC Peering Connection for more.
  • Please use VNI 1 as the value for the VXLAN network identifier for the session. The appliance will be configured to capture from VXLAN ID 1 by default.
